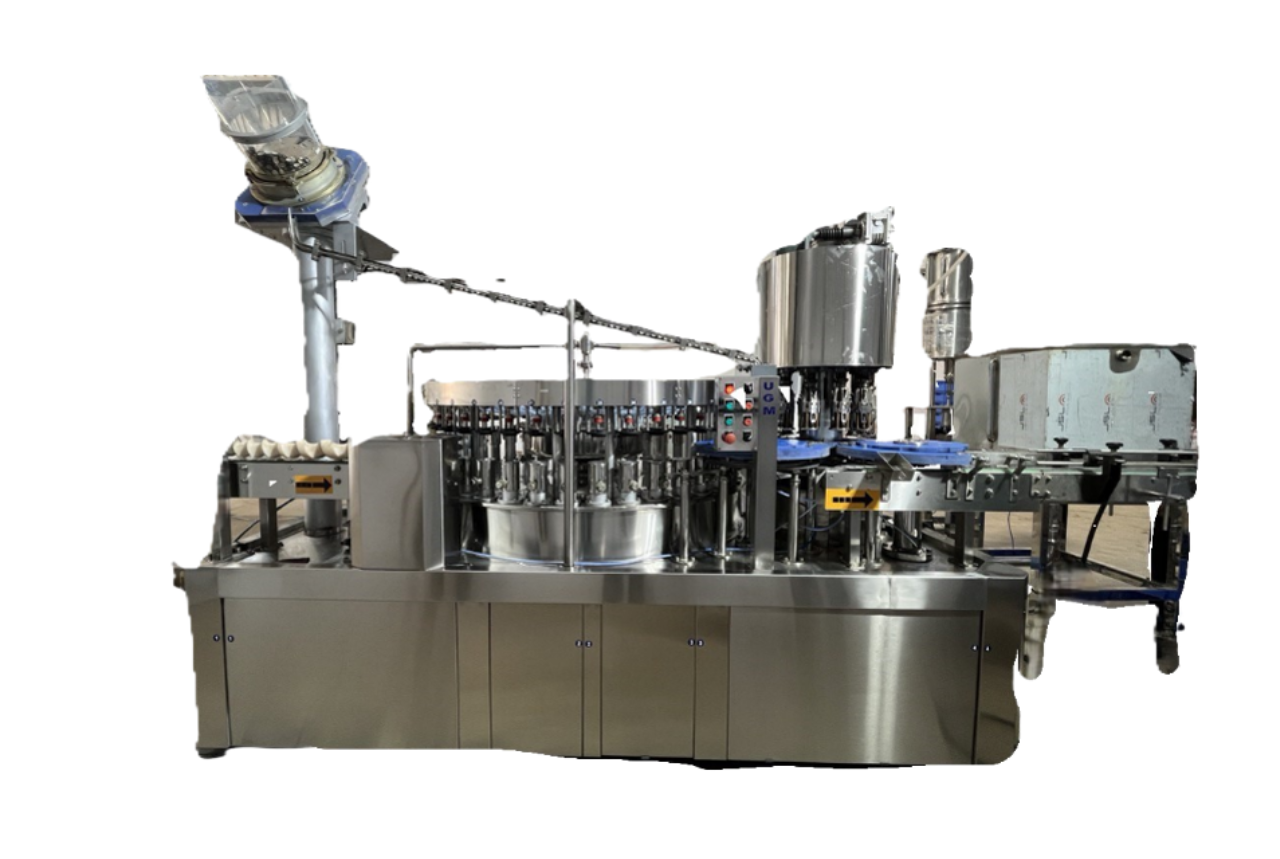

Filler Cum Sealer


  • ➤  It comes with Cap Feeder and Sealing Heads, which fills up the bottle, take the caps, seals and comes out.
  • ➤  It works in vacuumised manner in the Buoyancy principle.
  • ➤ Cap Feeder and Cap Track has sensor based system, to reduce the damage of the caps in it.
  • ➤  We’re using High Grade Polymers like UHMWPE, in which we used Bottle Pockets for filling and sealing.
  • ➤  The Buffer Tank is used for pouring the product into the tank, from the tank it pushes to Filling System to fill the product in Bottles.
  • ➤  Vacuum Pneumatic jar, used to restrict the overflow of filling inside the bottle.
Sl. No Speed (BPM) Model Filling Head Sealing Head Direction Filling Mechanism Type of Bottle Cap Sealing Power Required Base Material
1 240 UGP_FS240 40 10 Left to Right in Rotary Manner Level Filling Glass & PET ROPP 9 HP MS / SS
2 360 UGP_FS360 60 15 Left to Right in Rotary Manner Level Filling Glass & PET ROPP 10.5 HP MS / SS
3 405 UGP_FS405 80 20 Left to Right in Rotary Manner Level Filling Glass & PET ROPP 13 HP MS / SS
