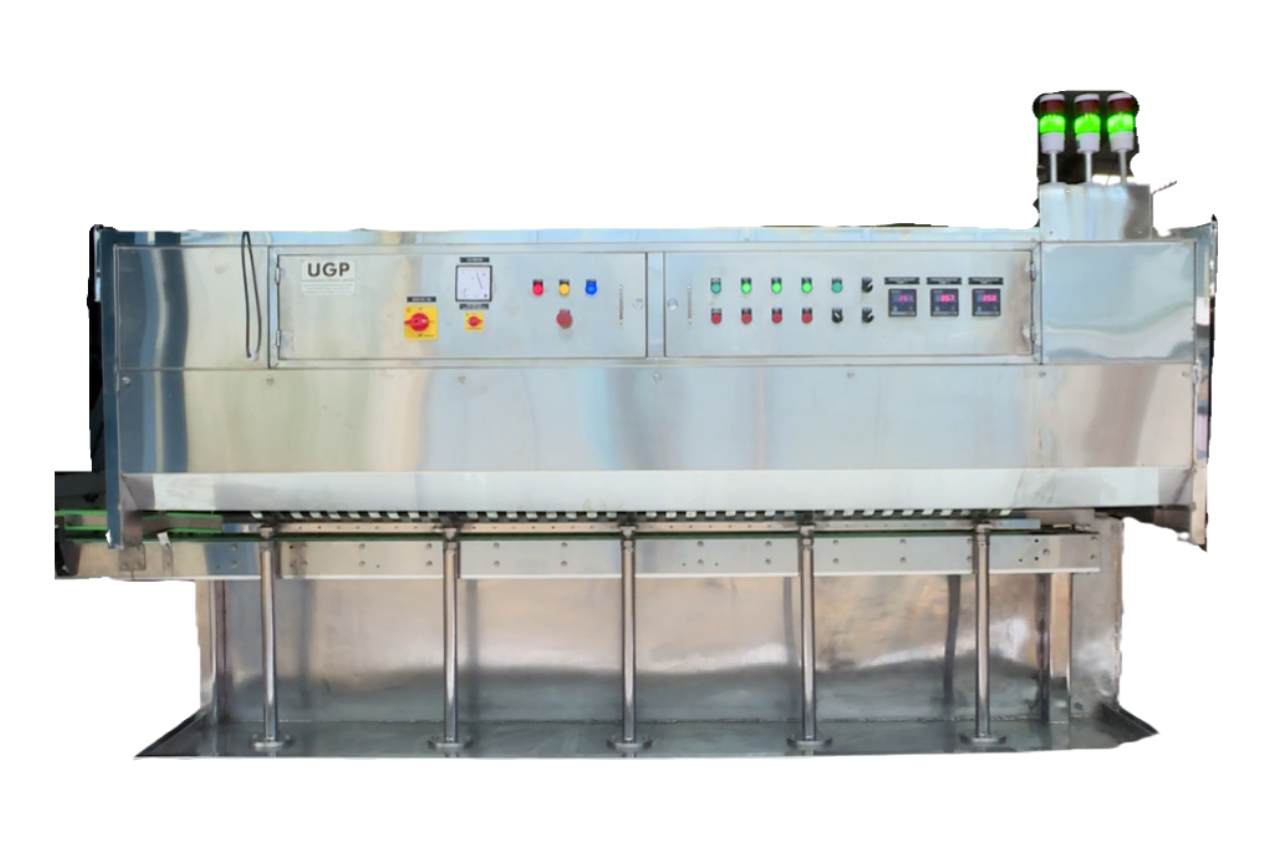

Tunnel Rinser
- ➤ Tunnel Rinser cleans the Bottle both interior and exterior via jet nozzles flows in water.
- ➤ It has 3 to 4 Different Washing System, which cleans sand particles and dirt inside and outside the bottle and final fresh water rinse to complete the cleaning process.
- ➤ Each Washing System has High Powered Monobloc Pump, which has capacity of more than 10 LPS ( Litres Per Second ).
- ➤ It comes with Manual Bottle Insertion and Manual or Auto Bottle remove mechanism via hand or unloading curve.
- ➤ It’s mostly used for 2nd Hand Glass Bottles.
| Sl. No |
Speed (BPM) |
Model |
No. of Carrier |
No. of Pockets |
Automation Grade |
Type of Bottle |
Base Material |
Power Required |
| 1 |
120 |
UGP_TR120 |
32 |
10 |
Automatic |
Glass |
MS / SS |
4 HP |
| 2 |
240 |
UGP_TR240 |
84 |
20 |
Automatic |
Glass |
MS / SS |
20 HP |
| 3 |
360 |
UGP_TR360 |
80 |
24 |
Automatic |
Glass |
MS / SS |
20 HP |
| 4 |
405 |
UGP_TR405 |
80 |
40 |
Automatic |
Glass |
MS / SS |
25 HP |
